Studio

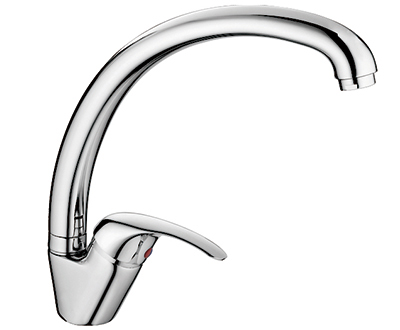

Single lever kitchen faucet, high spout

Ref: 05STU500CR

35 FLAT BASE CARTRIDGE
Ref: 2001

35 FLAT BASE CARTRIDGE
Ref: 2001

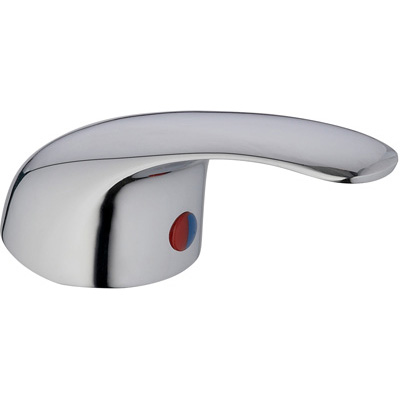

STUDIO LEVER
Ref: 2508

STUDIO LEVER
Ref: 2508

35 CARTRIDGE CAP
Ref: 3001

35 CARTRIDGE CAP
Ref: 3001

35 CARTRIDGE NUT
Ref: 4001

35 CARTRIDGE NUT
Ref: 4001

AERATOR M24x1
Ref: 6000

AERATOR M24x1
Ref: 6000

350 FLEXIBLE CONNECTOR M10x3/8''
Ref: 7500

350 FLEXIBLE CONNECTOR M10x3/8''
Ref: 7500

M8 FIXING KIT
Ref: 8001

M8 FIXING KIT
Ref: 8001

STAR SPOUT
Ref: 9502

STAR SPOUT
Ref: 9502

1 / 2
