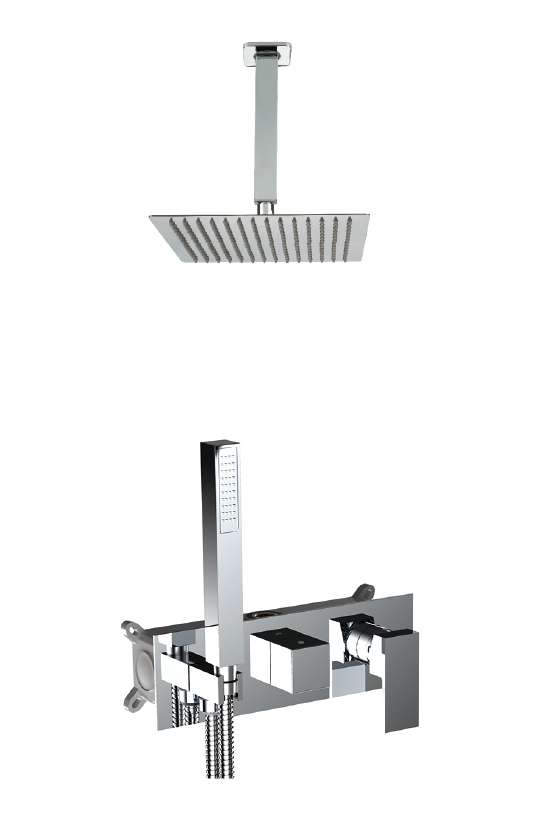

KIT BOLD EC239

Consists of:

2 and 3 ways concealed single lever mixer

Ceiling shower head Atlas C25 (25 x 25 cm)

Hand shower Minimalista

Ref: 19BOLEC23902

QUS HAND SHOWER
Ref: 10QUS0100

ATLAS C25 SHOWER HEAD 25x25 CM
Ref: 11ATL0220C25

STYLO SHOWER ARM
Ref: 12STY0120

CONCEALED SINGLE LEVER SQUARE HANDLE
Ref: 1519

BRACKET WITH SQUARE WALL OUTLET
Ref: 19CCT0125

35 FLAT BASE CARTRIDGE
Ref: 2001

SELECTOR CARTRIDGE
Ref: 2232

LUXOR LEVER
Ref: 2558

35 CARTRIDGE CAP
Ref: 3001

HORIZONTAL CONCEALED THERMOSTATIC DIVERTER CAP
Ref: 3023

35 CARTRIDGE NUT
Ref: 4001

CONCEALED HORIZONTAL SELECTOR NUT
Ref: 4037

HORIZONTAL SQUARE PLATE WITH 3 HOLES
Ref: 5031

ANTITWIST FLEXIBLE SHOWER HOSE CHROME
Ref: 8202107
