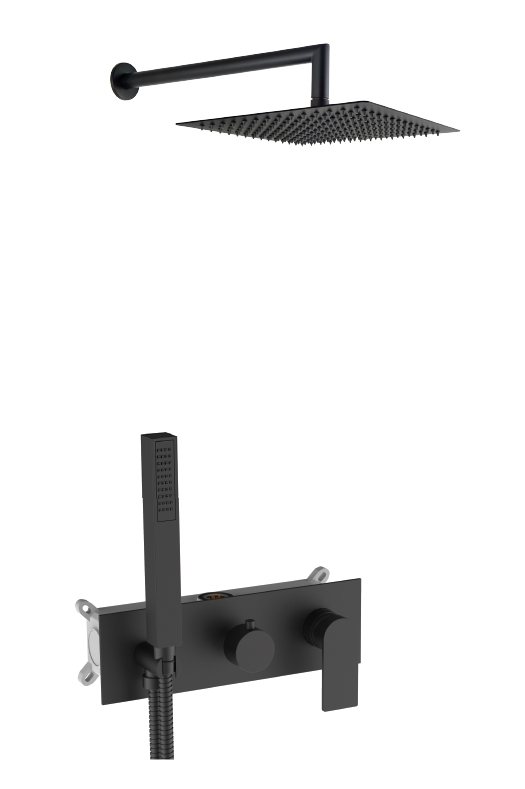

KIT ALPHA EC238 NG

Consists of:

2 and 3 ways concealed single lever mixer black matt

Wall shower head Atlas C25 (25 x 25 cm) black matt

Hand shower Minimalista black matt

Ref: 19ALPEC23805

Single lever horizontal concealed mixer

Wall shower head Atlas C25

BLACK QUS HAND SHOWER
Ref: 10QUS0500

BLACK QUS HAND SHOWER
Ref: 10QUS0500

BLACK ATLAS C25 SHOWER HEAD 25x25 CM
Ref: 11ATL0525C25

BLACK ATLAS C25 SHOWER HEAD 25x25 CM
Ref: 11ATL0525C25

BLACK VARY SHOWER ARM
Ref: 12VAR0520

BLACK VARY SHOWER ARM
Ref: 12VAR0520

AQUABLACK FLEXIBLE HOSE
Ref: 14AQU1750500

AQUABLACK FLEXIBLE HOSE
Ref: 14AQU1750500

BLACK CONCEALED THERM. 3 POSITIONS ROUND HANDLE
Ref: 1526NG

BLACK CONCEALED THERM. 3 POSITIONS ROUND HANDLE
Ref: 1526NG

BLACK BRACKET WITH ROUND WALL OUTLET
Ref: 19RCT0525

BLACK BRACKET WITH ROUND WALL OUTLET
Ref: 19RCT0525

35 FLAT BASE CARTRIDGE
Ref: 2001

35 FLAT BASE CARTRIDGE
Ref: 2001

SELECTOR CARTRIDGE
Ref: 2232

SELECTOR CARTRIDGE
Ref: 2232

BLACK BIG ALPHA LEVER
Ref: 2554NG

BLACK BIG ALPHA LEVER
Ref: 2554NG

BLACK 35 CARTRIDGE CAP
Ref: 3001NG

BLACK 35 CARTRIDGE CAP
Ref: 3001NG

HORIZONTAL CONCEALED THERMOSTATIC DIVERTER CAP BLACK
Ref: 3023NG

HORIZONTAL CONCEALED THERMOSTATIC DIVERTER CAP BLACK
Ref: 3023NG

35 CARTRIDGE NUT
Ref: 4001

35 CARTRIDGE NUT
Ref: 4001

CONCEALED HORIZONTAL SELECTOR NUT
Ref: 4037

CONCEALED HORIZONTAL SELECTOR NUT
Ref: 4037

BLACK HORIZONTAL SQUARE PLATE WITH 3 HOLES
Ref: 5031NG

BLACK HORIZONTAL SQUARE PLATE WITH 3 HOLES
Ref: 5031NG
