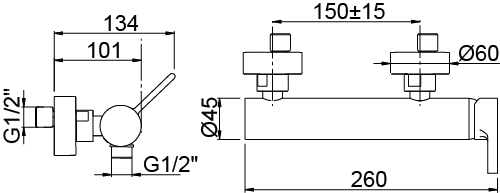

Dimensions

Spare parts

Assembly instructions

Urban Flow

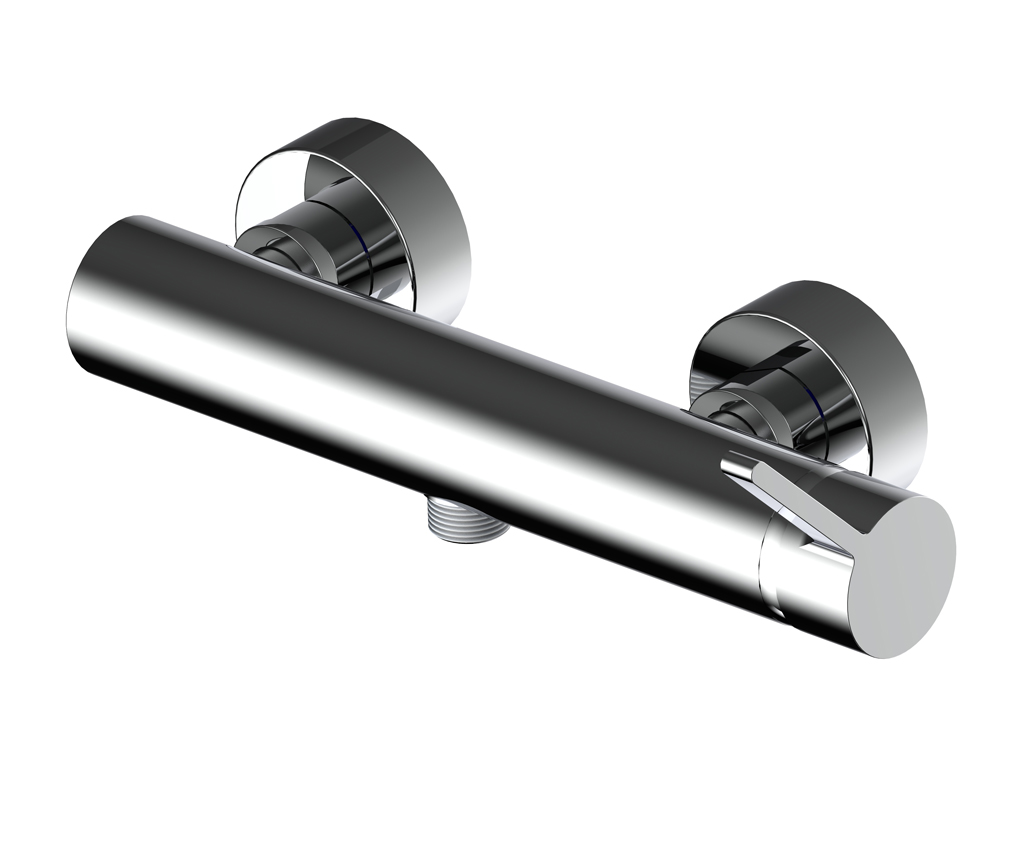

Single lever shower faucet, chrome

It may be supplied with or without shower equipment

Ref: 01URF300CR

35 FLAT BASE CARTRIDGE
Ref: 2001

35 FLAT BASE CARTRIDGE
Ref: 2001

BIG URBAN LEVER
Ref: 2591

BIG URBAN LEVER
Ref: 2591

35 CARTRIDGE CAP
Ref: 3001

35 CARTRIDGE CAP
Ref: 3001

35 CARTRIDGE NUT
Ref: 4001

35 CARTRIDGE NUT
Ref: 4001

ROUND S-COUPLING FLANGE
Ref: 5501

ROUND S-COUPLING FLANGE
Ref: 5501

3/4'' FLAT JOINT
Ref: 7003

3/4'' FLAT JOINT
Ref: 7003

S-COUPLING
Ref: 8006

S-COUPLING
Ref: 8006
